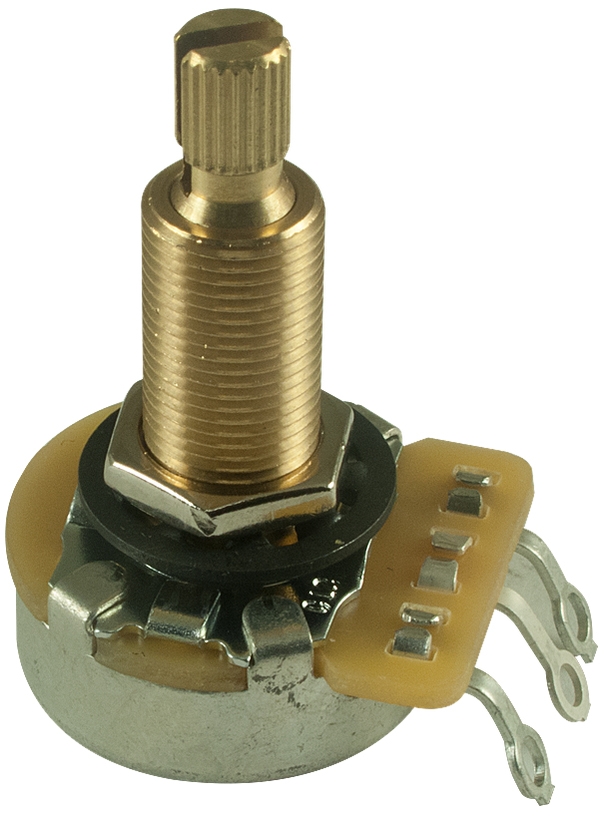

potentiomètre guitare 250K lin CTS, longue

CTS potentiomètre guitare 250K lin, longue, arbre fendue

- long shafted pots suitable for arch top guitars where the top can be thick, these pots will accommodate up to 16,75 mm thick materials
- you can use it for many Gibson Les Paul Guitars, but will not work for Historic series!
- these pots feature an audio taper, allowing to be used for either volume or tone
- the pot base measures 23,5 mm x 30 mm accross the body and requires a hole of a least 8 mm to fit
- the split shaft is for push-fit knobs

Total pot depth - 30 mm
Length of threaded shaft - 9 mm
Shaft diameter - 9,5 mm
Base of pot diameter - 23,5 mm
Long Shaft 3/4" or 19mm
