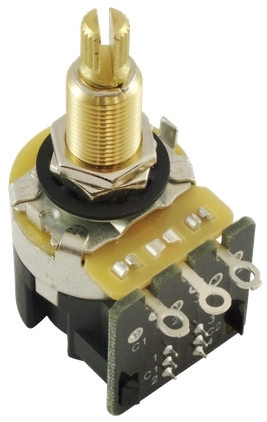

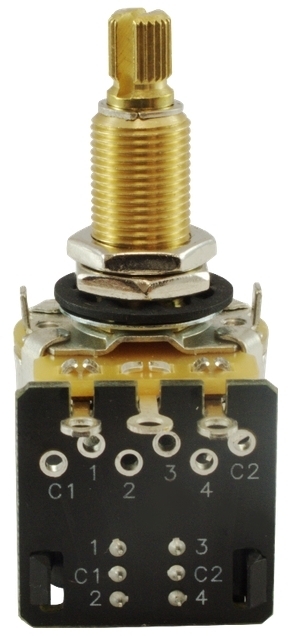

Guitar pot CTS 500K log, DPDT push pull, split shaft, long

High quality CTS push / pull DPDT guitar potentiometer 500K audio / log with long split shaft
Used for coil splitting, coil taping, phase switching and other mods, no additional hole necessary for toggle switch!

Pot comes with hardware

Value:
Typically, 250K potentiometers are used for single coil pickups and 500K potentiometers for humbucker pickups, for Les Paul®.

Body Diameter    0.94 in. / 23,87 mm
Body Depth    0.96 in. / 24,38 mm
Bushing Length    0.75 in. / 19,00 mm
Shaft Length    0.375 in. / 9,5 mm
Shaft Diameter    0.24 in. / 6 mm
